RTM1300G HOT-MELT GLUE STICKING MACHINE

Patent number:ZL 2011 2 0270255.1 / ZL 2010 1 0188701.4

Product details

Capability and use:

RTM1300G HOT-MELT GLUE STICKING MACHINE is specially developed for customers, it’s a new special-purpose equipment.It consists of seven standalone unit and two PUR glue suppliers.Among them, the double gluing machine is equipped with a set of gluing device for reticulated rolls and a set of gluing device for upper and lower reticulated

rolls.The production process is briefly described as follows:substrate is preheated by

dedusting and then coated with PUR hot melt adhesive on double coating machine,artificial

placement of frames, built-ins and panels on the roller assembly table,after pressing, the

finished sheet is exported by the output plate machine.

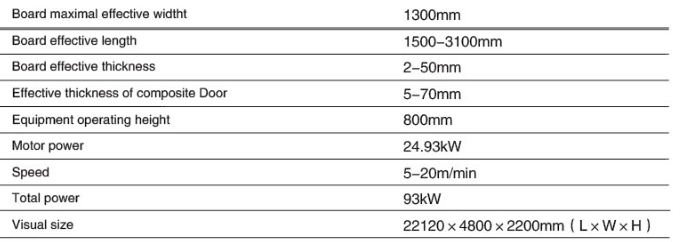

Technical parameters:


prev:RTM1300F HOT-MELT GLUE STICKING MACHINE

next:none
